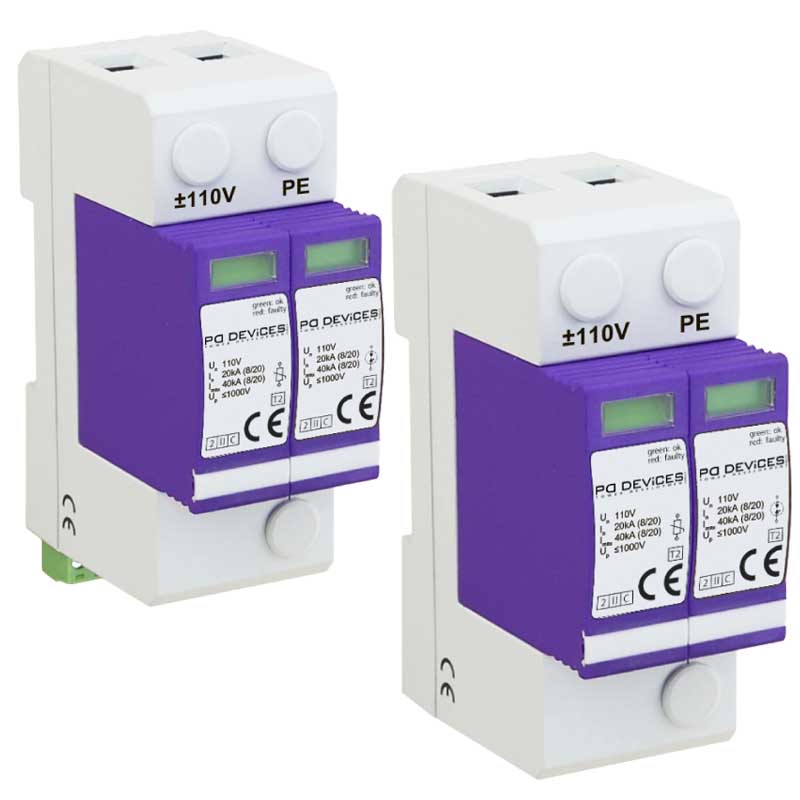

Type 2 Single Phase DC Rated 110V (T2INM2/20/20/110DCR)
Type 2 Single Phase DC Rated 110V (T2INM2/20/20/110DCR)
×
![]()
Description
- Type 2 - Class II
- Single Phase
- Rated Voltage Nominal Un 110V DC, Max Uc 180V DC
- Optional Remote indication
- Nominal Discharge 8/20 - 20kA L-N, 20kA N-PE
T2INM2/20/20/110DC & DCR - 110VDC Type 2 surge arrester designed to protect DC power supplies at the boundaries of LPZ 0B -2 or higher from the damaging effects of transient overvoltages. Meets IEC EN 61643-11, GB 18802.1, YD/T 1235.1, Nominal discharge current (8/20) 20/20kA In
